Custom Printed Circuit Board Design

Need a custom circuit board for your new design? Logical Projects can prepare schematics and often simulate your circuit, so you know it will work. In some cases, we can also test your firmware virtually! While we're not going to design quantum computer processing boards, or strip line RF technology, we can definitely create a board for your Internet of Things, edge computing, or custom interconnect board, using surface mount and/or through hole technology. When the design is done, we can provide 3D CAD models  for use in your MCAD process. If you like, we can even model and 3D-print a housing!

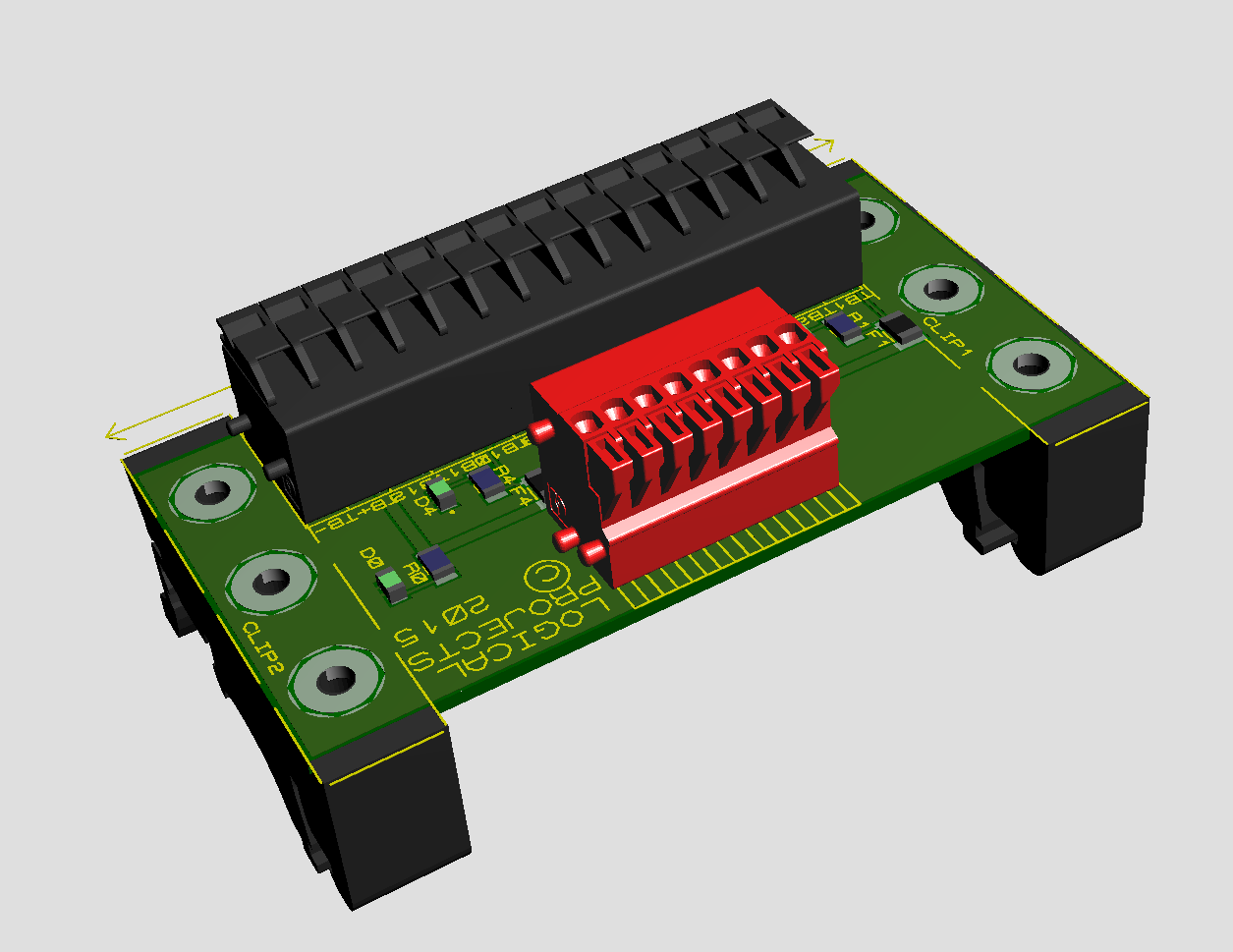

Screenshot 2024-04-10 200847

Custom Terminal Board

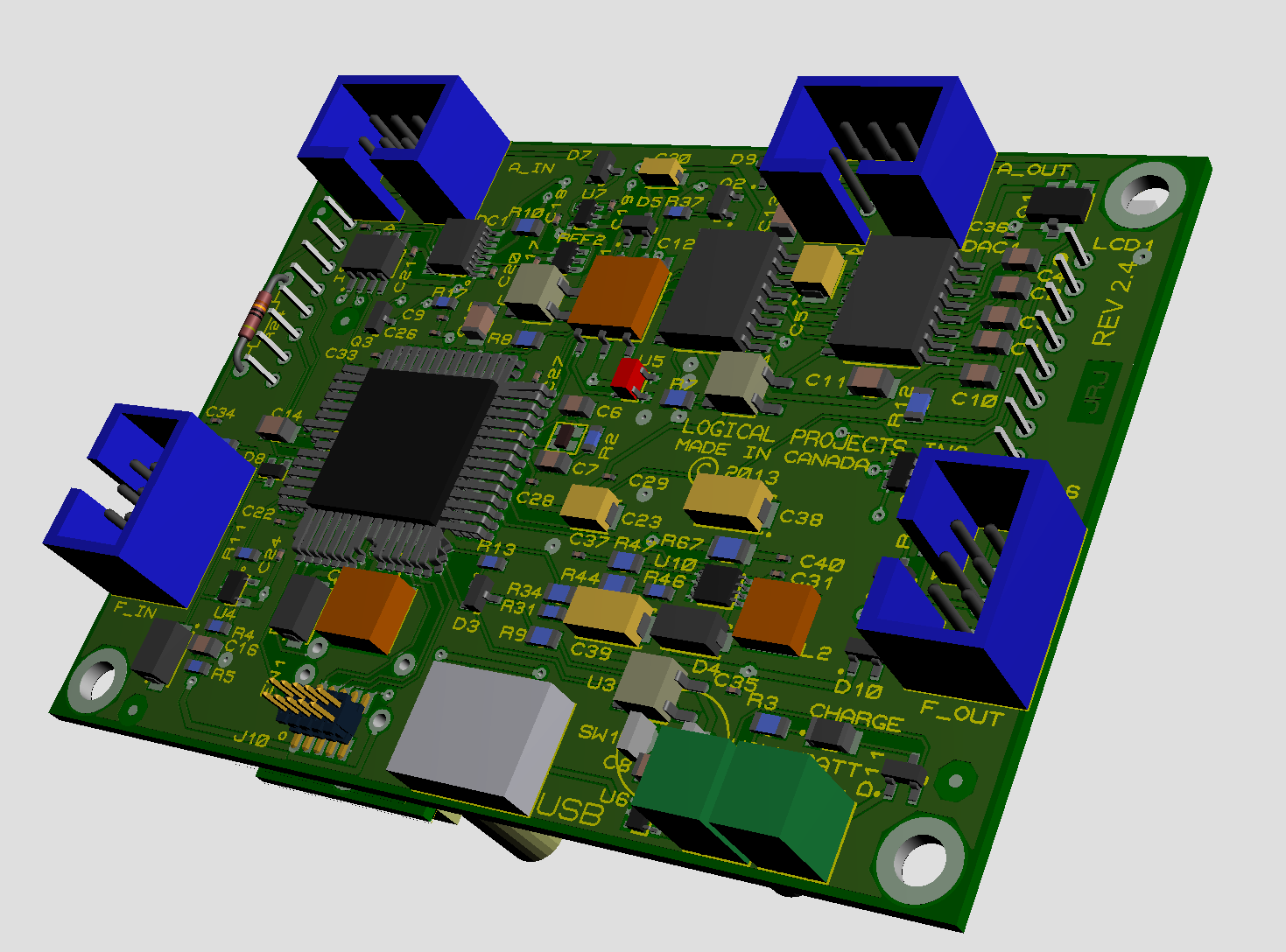

Screenshot 2024-04-10 153612

PSoC Microcontroller Board
